EDM Series Exhaust Fan 13W Spigot - EDM-100S

Product Description

• The EDM Series can be wall or ceiling mounted and is suitable for exhausting stale and moist air from homes, town houses and commercial buildings.
• Available in models to suit 100, 125 and 150mm duct sizes.
• The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes.

Product Features:

• Includes a high quality mechanical backdraft shutter that prevents outside air entering building when fan is switched off (except EDM-100S, EDM-200S and EDM-300S models)
• The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes
• ‘CT-4PL’ Range - Includes 8 minute run-on timer, shutters, and 4 pin plug and lead. Model EDM-200 only.
• ‘12V’ Unit - Suitable for wet areas (IPX7): requires a low-voltage transformer. Model EDM-100S-12V only.
• All models can be used to exhaust along a short length of duct. It is essential allowances be made for pressure losses in the duct to ensure air flows will meet
• the requirements of the application.
• 300 model features a slim line body.
• Grille can be easily removed for cleaning.
• All models, except the EDM-100S-12V, feature a pilot lamp.
• Class B motor, IP44 rated.
• Not speed controllable.

Technical Details:

• Operation Voltage: 240V
• Wattage: 13W
• Speed: 41 rps
• Motor Type: shaded-pole induction motor.
• Motor Electricity supply: single-phase 230V, 50Hz
• Bearings: Ball
• Maximum ambient temperature: 40°C
• IP Rating: IP44 (Class II insulatio )
• Usage: Outdoor

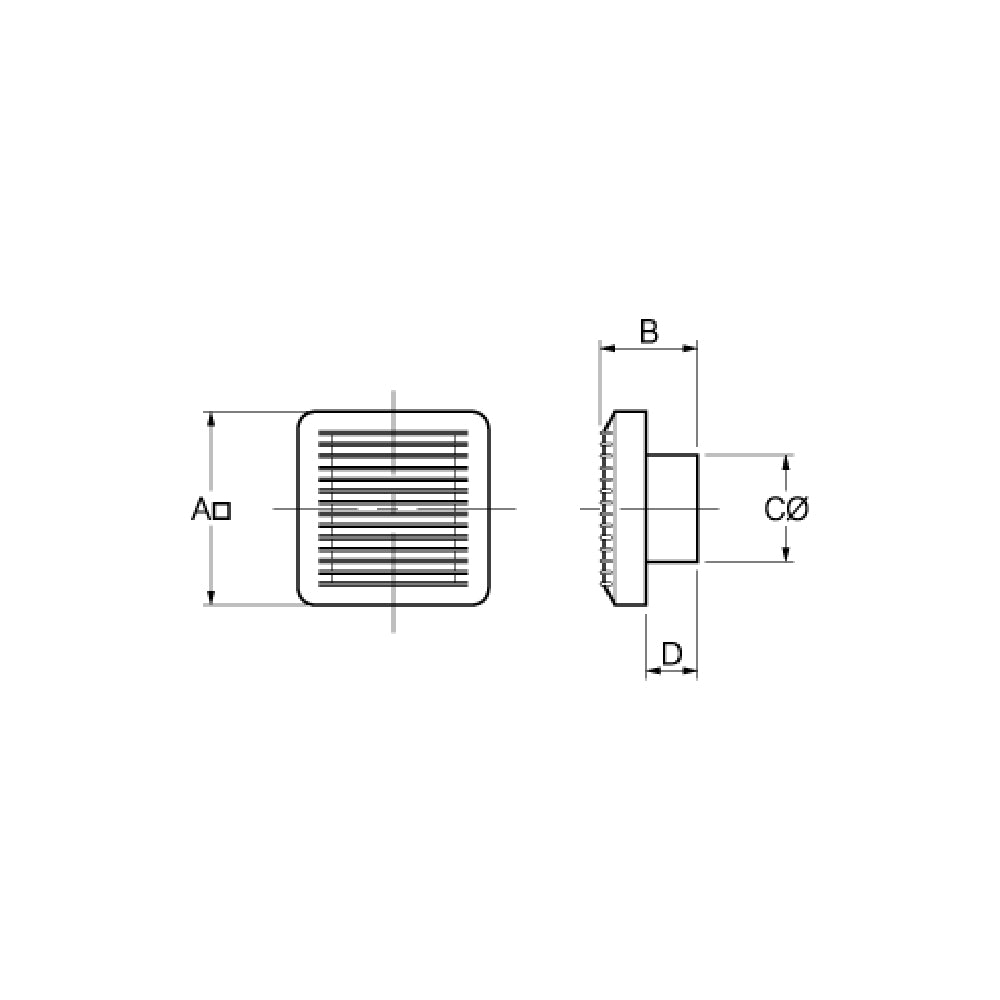

Dimensions:

• Width: 155 mm
• Depth: 55 mm
• Cut-Out: 98 mm

Brand & Design:

• Brand: Fantech Trade
• Collection: EDM Series
• SKU: EDM-100S

Warranty:

• 1-year replacement warranty
