EDM Series Exhaust Fan 13W With Shutter & Timer - EDM-100CT

Product Description

• The EDM Series can be wall or ceiling mounted and is suitable for exhausting stale and moist air from homes, town houses and commercial buildings. Available in models to suit 100, 125 and 150mm duct sizes.
• The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes.

Product Features:

• Includes a high quality mechanical backdraft shutter that prevents outside air entering building when fan is switched off (except EDM-100S, EDM-200S and EDM-300S models)
• The EDM-100 is also available in a 12V model suitable for caravans and mobiles homes
• ‘CT-4PL’ Range - Includes 8 minute run-on timer, shutters, and 4 pin plug and lead. Model EDM-200 only.
• ‘12V’ Unit - Suitable for wet areas (IPX7): requires a low-voltage transformer. Model EDM-100S-12V only.
• All models can be used to exhaust along a short length of duct. It is essential allowances be made for pressure losses in the duct to ensure air flows will meet the requirements of the application.
• 300 model features a slim line body.
• Grille can be easily removed for cleaning.
• All models, except the EDM-100S-12V, feature a pilot lamp.
• Class B motor, IP44 rated.
• Not speed controllable.
• The EDM-100 12V has Class III insulation, IP57.

Technical Details:

• Operation Voltage: 240V
• Wattage: 13W
• Speed: 41 rps
• Motor Type: shaded-pole induction motor.
• Motor Electricity supply: single-phase 230V, 50Hz
• Bearings: Ball
• Maximum ambient temperature: 40°C
• IP Rating: IP44 (Class II insulatio )
• Usage: Outdoor

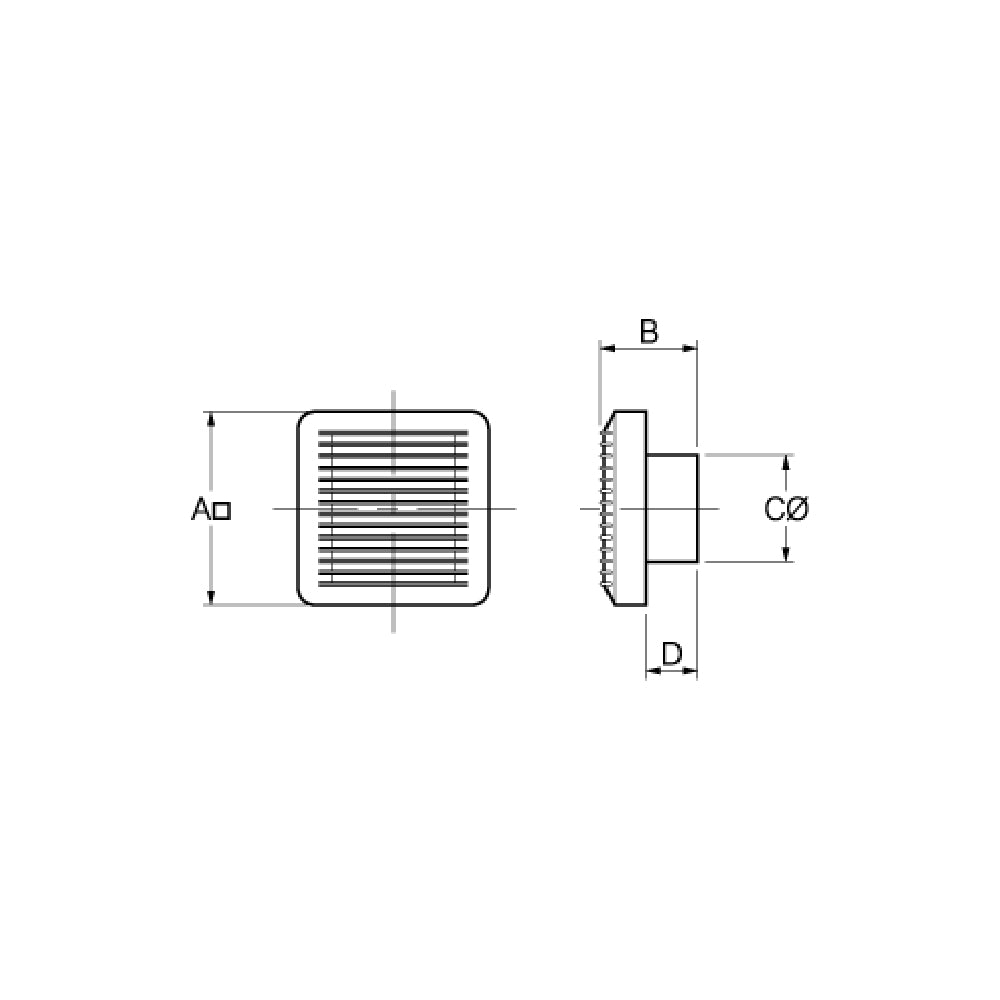

Dimensions:

• Width: 155 mm
• Depth: 55 mm
• Cut-Out: 98 mm

Brand & Design:

• Brand: Fantech Trade
• Collection: EDM Series
• SKU: EDM-100CT

Warranty:

• 1-year replacement warranty
