Ezifit Exhaust Fan 3 Speed - EIE150

Product Description

• The EziFit In-Wall exhaust fan mounts flush with the exterior wall of the building.
• It is barely visible, very powerful and easily accessible if cleaning or maintenance is required.
• It provides the most effective solution for exhausting air from downstairs rooms in two storey homes.

Product Features:

• Finishes flush to the external wall of the building.
• Neutral colour grille complements most brick colours.
• Fitted with insect-proof cover.
• Connects to 150mm diameter duct.
• The unit can exhaust from a number of points.
• Provides quiet, powerful exhaust.
• 3-speeds can be obtained using the DSS1-16, 3-speed switch (optional).
• Duct and grille kits are available (optional).

Technical Details:

• Operation Voltage: 240V
• Wattage: 50W / 60W / 75W
• Speed: 21 rps / 32 rps / 40 rps
• Motor Type: external rotor, squirrel cage induction motor.
• Motor Electricity supply: 230V, single-phase, 50Hz.
• Bearings: Ball
• Maximum ambient temperature: 65°C
• IP Rating: IP44 (Class II insulatio )
• Usage: Outdoor

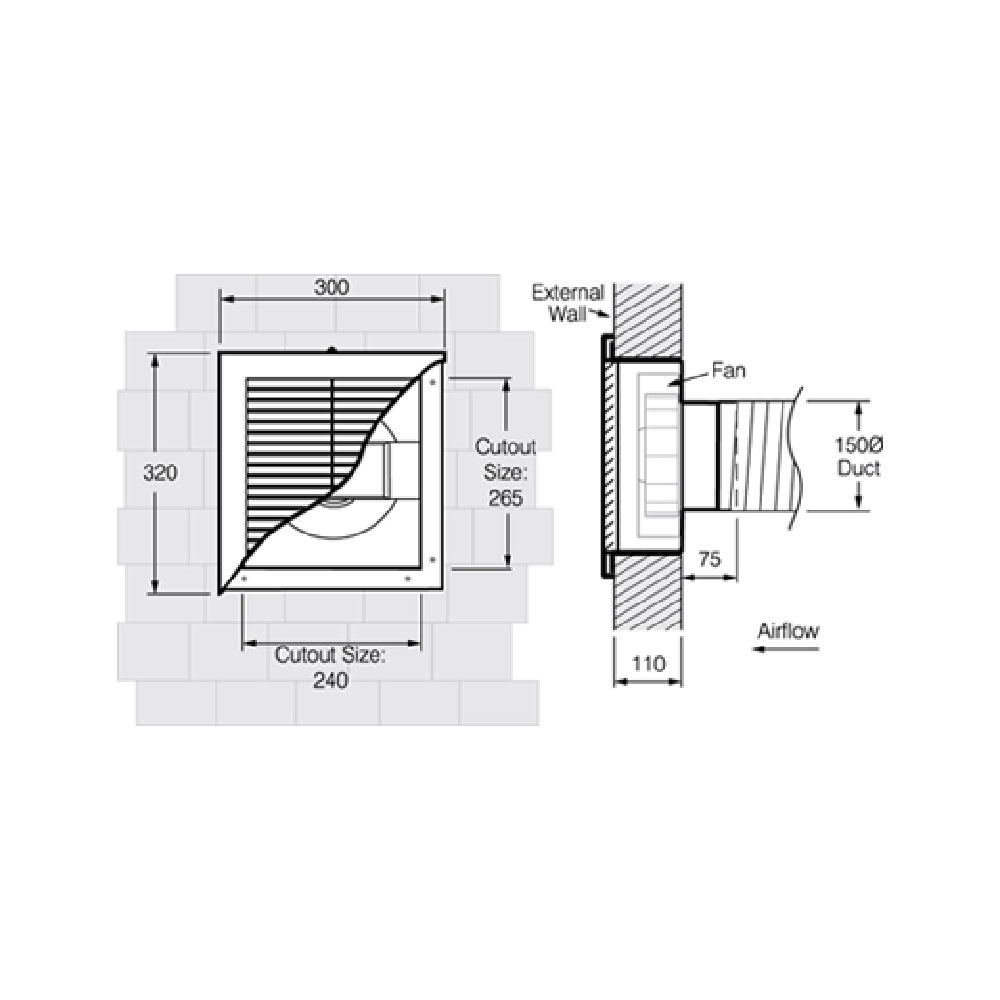

Dimensions:

• Width: 300 mm
• Depth: 110 mm
• Cut-Out: 240 mm

Brand & Design:

• Brand: Fantech Trade
• Collection: EziFit
• SKU: EIE150

Warranty:

• 1-year replacement warranty
