Recessed LED Downlight Step Dimmable By Wall Switch 10W White TRI Colour - DL1194/WH/TC

Product Description

This LED downlight features a 3-stage wall switch step dimming system and selectable colour temperature (3000K, 4000K, 5000K) via an inbuilt DIP switch. Designed with a durable polycarbonate heatsink and integrated LED driver with flex and plug, it delivers 90lm at 10%, 450lm at 50%, and 950lm at full brightness. It is dimmable through a standard wall switch, with no additional dimmer required. Easy to install with a 90mm cut-out size, IP44 rated for moisture protection, and backed by a 3-year replacement warranty.

Product Features:

• 3 Stage Wall Switch Step Dimming
• Cut-out size: 90mm
• Selectable colour temperature with an inbuilt DIP switch, 3000K/4000K/5000K
• Polycarbonate heatsink
• In-built LED driver with flex & plug
• Integrated design easy installation
• IP RATING: IP44
• 3 years Replacement Warranty

Technical Details:

• Operation Voltage: 240V

• Globe Base: Integrated LED

• Wattage: 10W

• Colour Temperature: (3000K - 4000K - 5000K)

• Lumen: 10%-brightness 90lm(1W) | 50%-brightness 450lm(5W) | 100%-brightness 950lm(10W)
• CRI: >80
• Beam Angle: 110°

• Dimmable: By wall switch - No need to install dimmer

• IP Rating: IP44
• Usage: Outdoor

Dimensions:

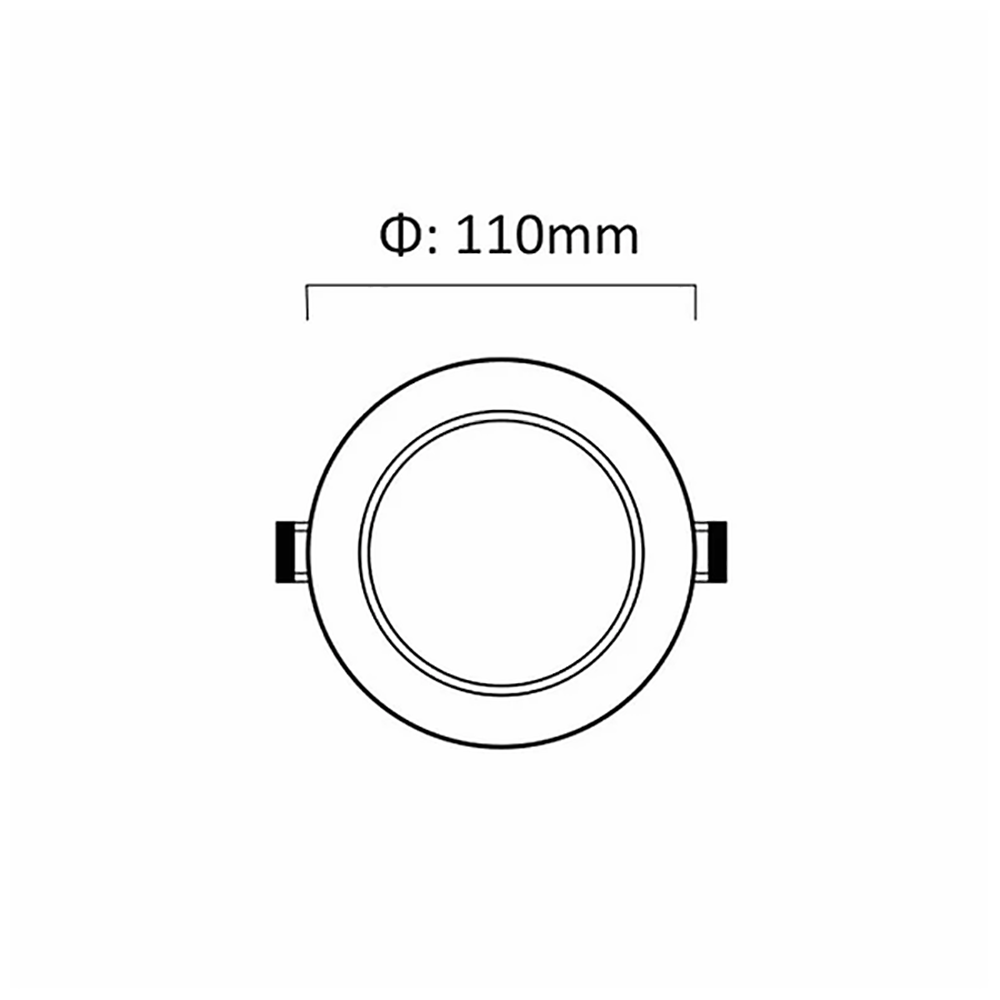

• Width: 110 mm
• Depth: 60 mm
• Cut-out: 90 mm


Brand & Design:

• Brand: 3A
• SKU: DL1194/WH/TC

• Colour: White


Warranty:

• 3-year replacement warranty

This fitting must be installed by a licensed electrician.
