Stylvent Series Exhaust Fan 62W Single Speed - HV-300AE

Product Description

• The Stylvent Series can be wall or window mounted and is suitable for a wide range of applications.
• The 230 and 300 models can be wired for exhaust or supply mode or dual purpose using an optional reversing switch.

Product Features:

• Available in 3 sizes for 230V supply.
• Models 230 and 300 are suitable for supply or exhaust applications. Model 150
• is suitable for exhaust only.
• For applications requiring both supply and exhaust a reversing switch isavailable.
• Electric shutters prevent outside air entering building when fan is switched off.
• IPX4 rated.
• Tough and long lasting ABS plastic.
• Maximum ambient of 40°C.
• Optional weather Cap for protection against harsh external conditions.
• For wall mounting, a kit of threaded “wall rods” and sleeves can be supplied as
• an optional extra. Caters for walls ranging in thickness from 25 to 300mm

Technical Details:

• Operation Voltage: 240V
• Wattage: 62W
• Speed: 19 rps
• Motor Type: the HV-150 is shaded pole and the HV-230 and 300 are external rotor motor.
• Motor Electricity supply: single-phase 230V, 50Hz.
• Bearings: sleeve
• Maximum ambient temperature: 40°C
• IP Rating: IPX4 (Class II insulatio )
• Usage: Indoor

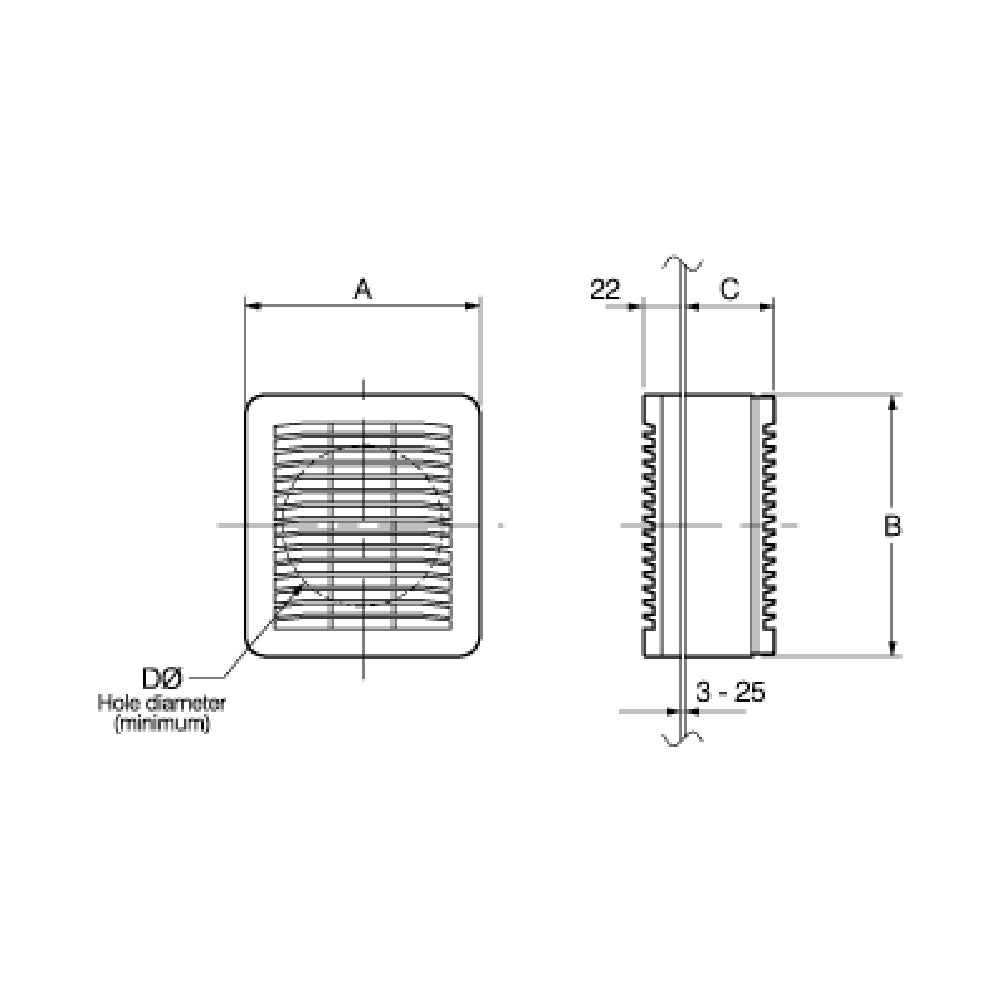

Dimensions:

• Width: 368 mm
• Projection: 22 mm
• Depth: 150 mm
• Height: 403 mm

Brand & Design:

• Brand: Fantech Trade
• Collection: Stylvent Series
• SKU: HV-300AE

Warranty:

• 1-year replacement warranty
