TD Silent Exhaust Fan Series L568mm - TD-800/200SIL

Product Description

• The TD Silent Series of low-profile mixed-flow in-line fans incorporates a break-through in noise reduction resulting in units that operate very quietly.
• The low noise levels are achieved through the technically advanced design of the internal construction, which does not impede on the air flow performance of the fan.
• There are 6 models in the series, ranging from 100 to 315mm diameter spigot sizes.

Product Features:

• High performance mixed-flow impeller.
• Low noise operation.
• Vibration absorbing elements are integrated into the advanced body design.
• 360° rotating junction box makes connection of power cable easier (applicable for 100, 125, 150 and 200mm sizes only).
• Integral mounting foot makes installation more simple.
• 1 to 30 minute run-on timer available on 100 to 200mm models.
• Includes plug and lead for easy installation.
• Convenient 2-speed motor, factory set to high speed (single speed on models with run-on timer).
• Fan body can be easily removed without disturbing connected ductwork.

Technical Details:

• Operation Voltage: 240V
• Wattage: 90W / 95W
• Speed: 41 rps / 46 rps
• Motor Type: Standard models - 2-speed, squirrel cage induction motor
• Motor Electricity supply: 230V, single-phase, 50Hz
• Bearings: ball
• Maximum ambient temperature: 60°C
• IP Rating: IP44
• Usage: Outdoor

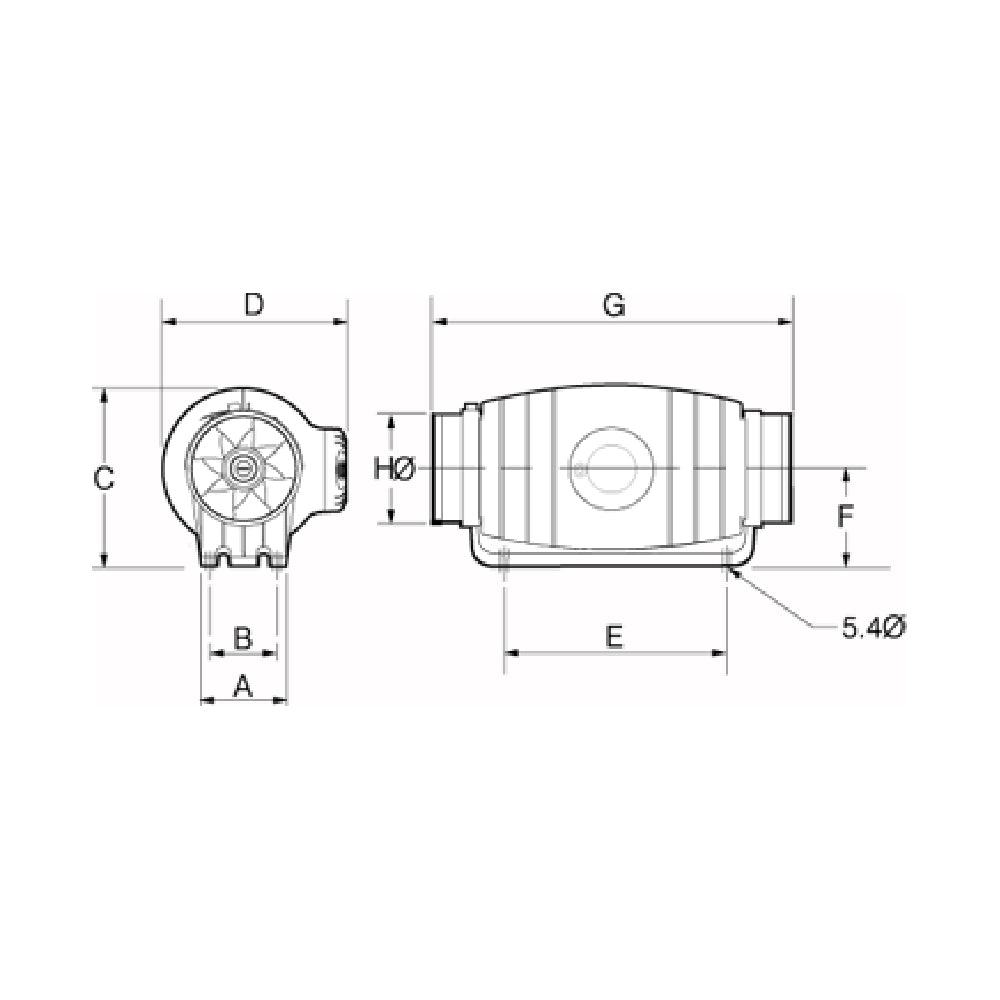

Dimensions:

• Width: 296 mm
• Length: 568 mm
• Height: 296 mm
• Base Width: 129 mm

Brand & Design:

• Brand: Fantech Trade
• Collection: TD Silent
• SKU: TD-800/200SIL

Warranty:

• 1-year replacement warranty
